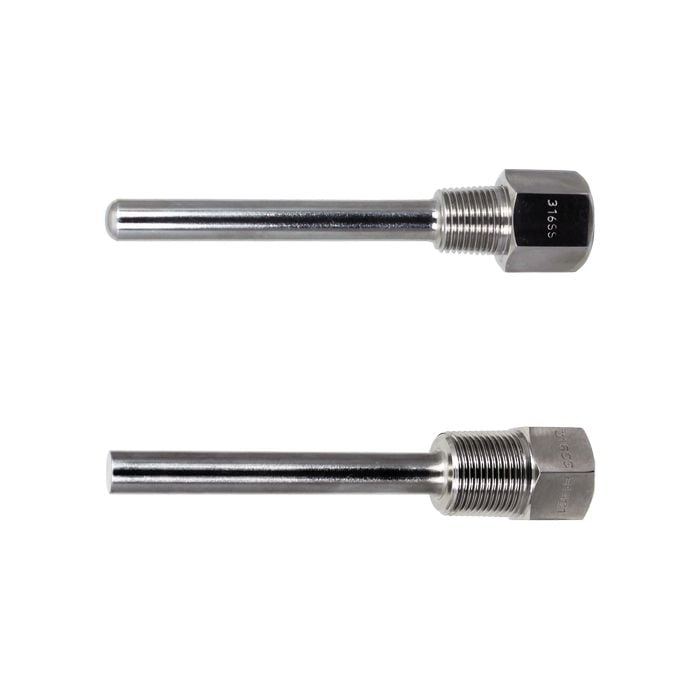

1/2 inch and 3/4 inch BSPT Threaded Thermowell Assemblies
Machined from solid barstock, available with a 1/2 inch BSPT or 3/4 inch BSPT male process thread (complete with hexagon).
The stems are supplied machined as standard from solid 316 stainless steel barstock. Test certificates available on request.
Our thermowells are machined from solid barstock and can be supplied with a 1/2 inch BSPT or 3/4 inch BSPT male process thread (complete with hexagon) which screws into the process.
The stems of the wells are supplied machined as standard from solid 316 stainless steel barstock for lengths up to 300mm.
Test certificates available on request.
Note: minimum sensor length = stem length (U) + 45mm (T) + length of fitting(s) used for sensor
Features
- Supplied with 1/2" BSPT or 3/4" BSPT male threaded connection
- Machined 316 Stainless Steel stem as standard (up to 300mm)
- 12.7mm outside stem diameter (± 0.2mm) (7.4mm ∅ ID)
| Product Extra Information |
1/2 inch BSP Tapered Male Process Thread
1/4 inch BSP Tapered Male Process Thread
|
|---|
Minimum sensor length = stem length (U) + 45mm (T) + length of fitting(s) used for sensor.
