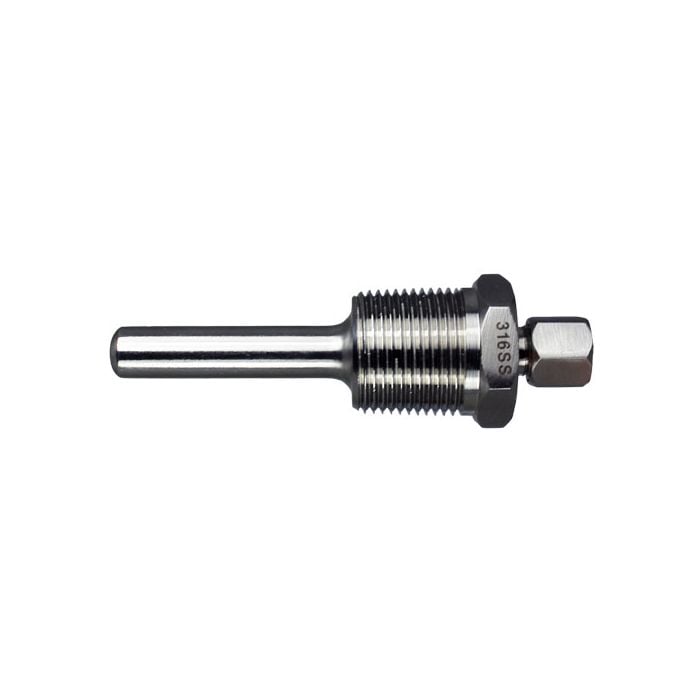

3/4 inch BSPT Thermowell Assemblies with Integrated Compression Fitting (to suit 6.0mm dia. tubes)
3/4 inch BSPT threaded thermowells with an integrated compression fitting which includes a single compression olive to suit 6.0mm diameter tubes. Fabricated from 316 Stainless Steel material and supplied with a male process thread (complete with hexagon).
The 3/4 inch BSPT threaded thermowells have an integrated compression fitting that includes a single compression olive to suit 6.0mm diameter tubes. They are fabricated from 316 Stainless Steel material and supplied with a male process thread (complete with hexagon) which screws into the process.
The stem has an outside diameter of 11mm (± 0.2mm) and a 7mm inside diameter.
The pockets are stocked in standard lengths up to 200mm so can normally be supplied ex-stock if required urgently.
Note: Minimum sensor length = stem length (U) + 50mm. E.g. 50mm length thermowell is for a 100mm sensor.
Features
- 316 stainless steel standard material
- 11.0mm stem diameter (± 0.2mm) (7.0mm diameter ID)
- 3/4 inch BSPT male process thread
- Integral compression fitting suits 6.0mm diameter tube
- Available ex-stock
- Replacement olives and nuts available
| Product Extra Information |
|
|---|
Minimum sensor length = stem length (U) + 50mm. E.g. 50mm length thermowell is for a 100mm sensor.
