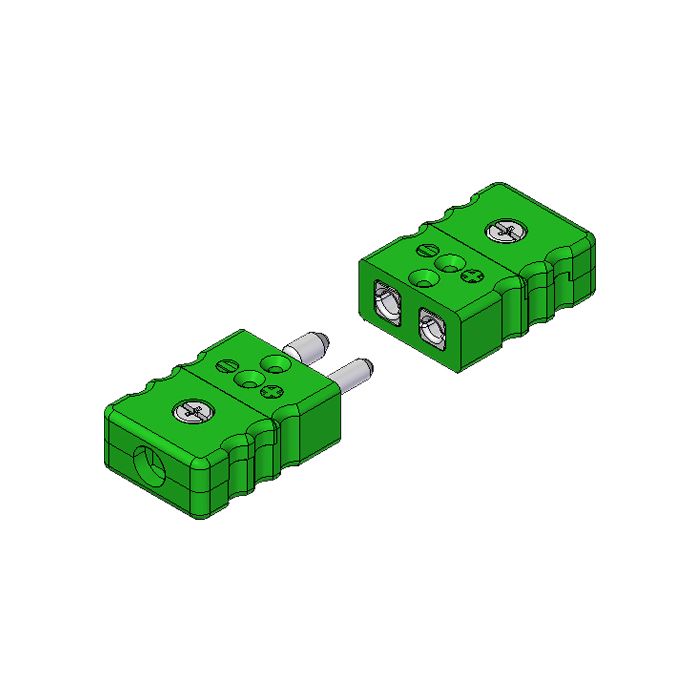

Standard Thermocouple and RTD Connectors

As low as £4.14 £3.45

Only %1 left

Code

RSP/RSJ

Standard connectors for thermocouple and RTD circuits. Solid pin design. Accepts wires up to 1.6mm (8.0mm cable dia. max). -50...+220°C max.

Standard connectors for thermocouple and RTD circuits. Solid pin design ensures good contact even in demanding applications.

Accepts wires up to 1.6mm (8.0mm cable dia. max).

Temperature rating -50...+220°C Max.

Construction

Glass filled high quality thermoplastic body with original thermocouple material pins and springloaded inserts
Polarized pins ensure proper connection
Central cover screw design for quick wiring
Moulded barriers prevent short circuit
Captive cover screw for easy assembly
Stainless Steel screws with combination head (slotted and Phillips)
Easy wire connection through sandwich construction

Wire Size

Temperature Rating

Colour Code

Colour coded to IEC 60584.3 as standard. ANSI colours also available - contact sales

Product Extra Information

Sensor Type	Material		Colour		Code
Sensor Type	Positive	Negative	IEC	ANSI	Plug	Socket
Thermocouple Type K	NiCr	NiAl	Green	Yellow	RSP-K	RSJ-K
Thermocouple Type J	Fe	CuNi	Black	Black	RSP-J	RSJ-J
Thermocouple Type T	Cu	CuNi	Brown	Blue	RSP-T	RSJ-T
Thermocouple Type N	NiCrSi	NiSi	Pink	Orange	RSP-N	RSJ-N
Thermocouple Type E	NiCr	CuNi	Violet	Violet	RSP-E	RSJ-E
Thermocouple Type R/S	Cu	Alloy#11	Orange	Green	RSP-R	RSJ-R
RTD	Cu	Cu	White	White	RSP-U	RSJ-U

Hollow pin connectors also available - contact sales for further information
