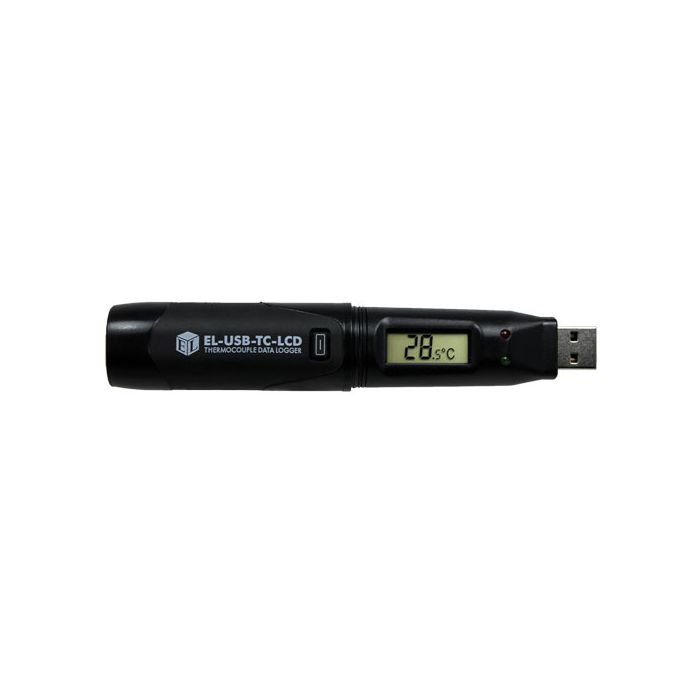

Thermocouple USB Data Logger with LCD

£102.59 £85.49
Code
HDT-400
  • Buy 6 for £98.48 £82.07 each and save 4%
  • Buy 11 for £94.38 £78.65 each and save 8%

Measure and store up to 32,510 temperature readings from either a K, J or T type thermocouple (attached at the base of the unit). Supplied with battery, basic Type K thermocouple and link to free PC software for configuration/analysis.

Brand image

Measure and store up to 32,510 temperature readings from either a K, J or T type thermocouple (attached at the base of the unit).

The high contrast LCD with 4-digit temperature display can show several different temperature variables at the touch of a button: last temperature, maximum logged temperature and minimum logged temperature.

The HDT-400 data logger is supplied with a basic Type K thermocouple for 0°C to +200°C (+32°F to +392°F) measurement and a long-life replaceable lithium battery which can typically allow logging for 6 months (depending on logging rate, ambient temperature and use of alarm LEDs). Status is indicated by flashing red and green LEDs.

Easily configure the data logger by plugging it into a PC's USB port and running the free EasyLog USB software, available for download using the link below. Configuration options include: logger name, measurement unit (°C or °F), logging rate, high/low alarm levels, immediate, delayed and push-to-start logging, display parameters, data rollover options and start date/time. Logged data can be downloaded via the software and then graphed, printed or exported to other applications.

Supplied Thermocouple Specification: Thermocouple Type K, 100mm x 3.0mm diameter stainless steel probe, 1350mm fibreglass insulated cable with miniature thermocouple plug attached.

Lascar Product Code: EL-USB-TC-LCD

Features

  • Accepts K, J, T thermocouple inputs
  • Supplied with basic Type K thermocouple (0°C to +200°C / +32°F to +392°F)
  • High contrast, 4-digit LCD
  • Easy setup using free EasyLog USB PC software
  • Programmable alarm thresholds
  • Status indication via red and green LEDs
  • Immediate, delayed and push-to-start logging
  • Replaceable battery supplied
  • Link to free configuration software supplied
  • Separate wall clip
