RTD Calibrator
As low as
£336.00
£280.00
Only %1 left
Code
HCAL-720.

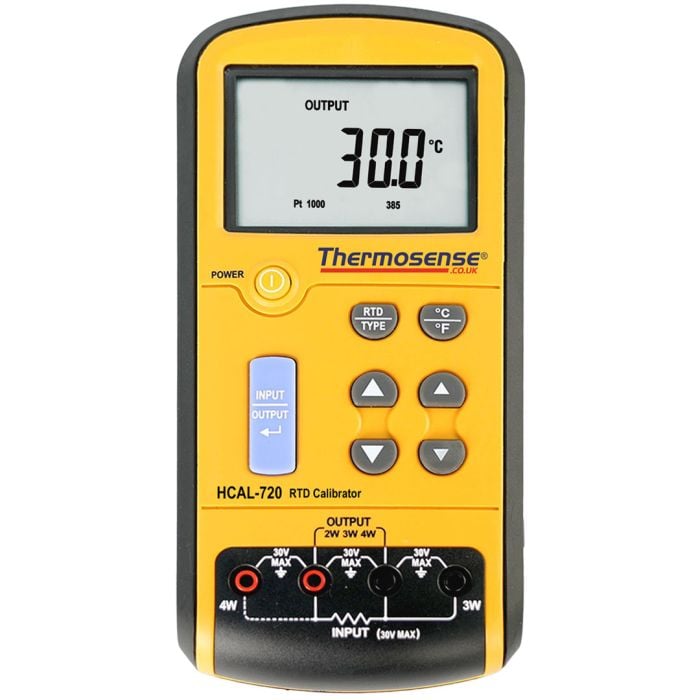

Precision handheld calibrator for Resistance Temperature Detector (RTD) sensors. Can measure and simulate multiple RTD types (2, 3, 4 wire) and resistance values, with selectable °C, °F, or ohms units. Large 5-digit LCD for clear readings.
Precision handheld calibrator for Resistance Temperature Detector (RTD) sensors. Can measure and simulate multiple RTD types (2, 3, 4 wire) and resistance values, with selectable °C, °F, or ohms units. Large 5-digit LCD for clear readings.
Features
- Measures and simulates 7 RTD types: PT10, PT50, PT100, PT200, PT500, PT1000 (385), and PT100 (JIS)
- 2, 3 and 4 wire measurements and simulation
- Supports measurement and simulation of resistance (Ω) and corresponding temperature
- Wide resistance and temperature range: 0.00-3200.0 Ω and -200.0 to 630.0 °C (approx.)
- High accuracy: typically ±0.2 °C for temperature and approximately ±0.1 Ω for resistance measurements (values vary by range/type)
- Selectable units: °C, °F, or ohms depending on function
- Large 5-digit LCD for clear readings, similar in size to other VA series calibrators
- Auto power-off (typically ~30 minutes) with low-battery indication
- Handheld, rugged design powered by 6 x AAA batteries; compact and portable (~205 x 98 x 46 mm, ~472 g)
- Powered by 6 x AAA batteries (not supplied)
- External power supply jack (power supply available separately)
- Supplied with test leads, connectors, user manual and soft carry case
Typical applications
- Calibrating RTD transmitters, sensors, and temperature measurement loops in industrial process control.
- Simulating RTD signals to verify instrument inputs such as temperature controllers, recorders, PLCs, and data acquisition systems.
- Commissioning and maintenance of temperature measurement hardware using resistance-based sensors.
